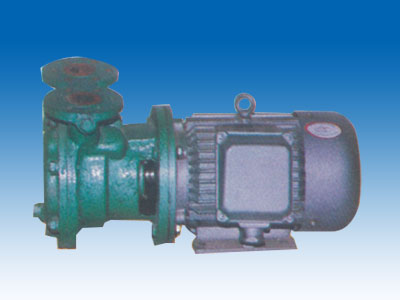

CXZ Series Marine Self-Priming Vortex Pump
Introduction:
CXZ series marine self-priming vortex pump can transport drinking water and washing water,and can alsobe used as sanitary pump to transport seawater and fresh water.
The typical example and its explanation for the pump type
For example : 32CX2-25
32-entrance diameter of the pump,mm
CXZ- marine self-priming vortex pump
25-head,m
Main technical performance parameters
The main technical performancy parameters are showed in table.
| Type | Main technical performance parameters | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Capacity m3/h | Head m | Speed r/min | NPSHr m | Suction head m | Shaft power kW | Matched power kW | Pump weight Kg | ||
| 20CXZ-35 | 1 | 35 | 2900 | 7 | 3 | 0.43 | 0.75 | 42 | |
| 32CXZ-25 | 3.5 | 28 | 2900 | 7 | 3 | 1.48 | 1.5 | 57 | |
| 32CXZ-40 | 3 | 40 | 2900 | 6 | 4 | 1.82 | 2.2 | 57 | |
| 40CXZ-30 | 9 | 30 | 2900 | 6 | 4 | 2.54 | 4 | 80 | |
